Indicator, Series 51, 24 mm x 18 mm, Raised, IP65, Universal terminal, 2 x 0.5 mm
- 51-903.7
- 51-041.006
- 10-2J12.1066
Ajoute des accessoires & outilage
Votre produit:
Gamme de produits
- HMI function:
- Indicator
- Séries:
- Series 51
Front
- Front dimension:
- 24 mm x 18 mm
- Front form:
- Rectangular
Montage
- Design:
- Raised
- Mounting cut-out:
- Ø 16 mm
- Mounting type:
- Panel mounting
Partie commande/affichage
- Lens colour:
- Colourless
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
- Illumination colour:
- Blue
Caractéristiques électriques
- Switching voltage and switching current:
- 100 mA at 42 VAC/VDC
- Operating voltage:
- 24 V AC/DC +10%
- Operation current:
- 7 - 14 mA ±15 %
- Lumi. Intensity:
- 650 mcd
Caractéristiques mécaniques
- Terminal:
- Universal terminal, 2 x 0.5 mm
- Tightening torque:
- Fixing nut max. 0.5 Nm
- Poids total:
- 0.009 kg
Conditions environnementales
- IP front protection:
- IP65
- Operating temperature:
- – 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
Autres
- Housing colour:
- Black
- Wiring diagrams:
Enregistrer ou recommander un produit
Télécharger des fichiers
Non disponible
Votre produit se compose des éléments suivants 3 COMPONENTS:
Front
- Front form:
- Rectangular
Partie commande/affichage
- Lens colour:
- Colourless
- Lens material:
- Plastic
- Lens illumination:
- Illuminated
- Lens shape:
- Flush
- Lens optics:
- transparent
Caractéristiques mécaniques
- Weight:
- 0.002 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Lens, 21.5 mm x 15.3 mm, Illuminated, Colourless, Flush, Plastic
- Dimension:
- 21.5 mm x 15.3 mm
Télécharger des fichiers
Composant pour 4.04 USD
Ajouter au panier
Front
- Front dimension:
- 24 mm x 18 mm
- Front form:
- Rectangular
Montage
- Design:
- Raised
- Mounting type:
- Panel mounting
Caractéristiques électriques
- Switching voltage and switching current:
- 100 mA at 42 VAC/VDC
- Electric strength:
- 2500 VAC, 50 Hz, 1 min. between all terminals and earth, according to IEC 61058-1, part 15
Caractéristiques mécaniques
- Terminal:
- Universal terminal, 2 x 0.5 mm
- Tightening torque:
- Fixing nut max. 0.5 Nm
- Weight:
- 0.006 kg
Conditions environnementales
- IP front protection:
- IP65, according to DIN EN 60529
- Operating temperature:
- – 25 °C … + 55 °C, mounted as a block, make sure the heat can escape freely
- Storage temperature:
- – 40 °C … + 85 °C
- Shock resistance:
- 15 g for 11 ms, as per DIN / EN 60512-4-3, DIN / EN 60068-2-27 (Single impacts, semi-sinusoidal)
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Actuator, 24 mm x 18 mm, Rectangular, Universal terminal, 2 x 0.5 mm, IP65, according to DIN EN 60529
- Internal size:
- 21,5 mm x 15,3 mm
- Housing colour:
- Black
- Wiring diagrams:

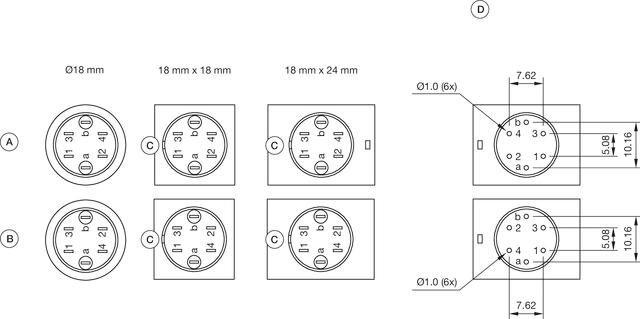

- Component layouts:
A = Universal terminal (rear side)
B = Plug-in terminal (rear side)
C = Anti twist device

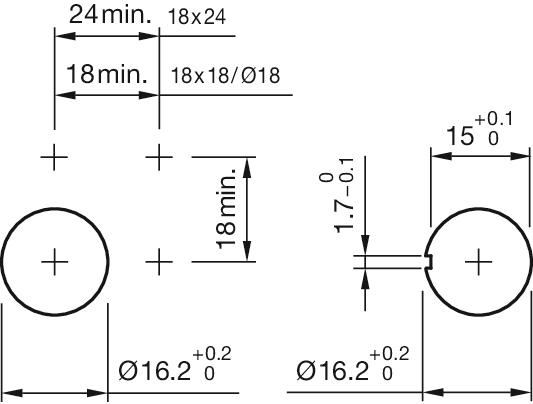

D = Drilling plan- Mounting cut-outs:

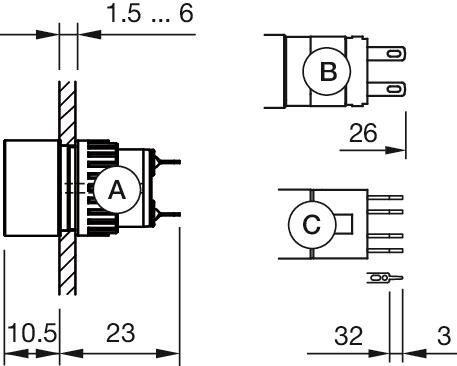

- Dimension drawings:
A = Solder terminal
B = Plug-in terminal 2.8 mm x 0.5 mm
C = Universal terminal 2.0 mm x 0.5 mm
Télécharger des fichiers
Non disponible
Partie commande/affichage
- Illumination colour:
- Blue
Caractéristiques électriques
- Operating voltage:
- 24 V AC/DC +10%
- Operation current:
- 7 - 14 mA ±15 %
- Lumi. Intensity:
- 650 mcd
Caractéristiques mécaniques
- Weight:
- 0.001 kg
Certificats
- REACH:
- REACH compliant
- RoHS:
- RoHS compliant
Autres
- Short Description:
- Single-LED, T1 ¾ MG, Blue, 24 V AC/DC +10%
- Kind of iIllumination:
- Single-LED
- Hints:
- Due to high surface temperatures, the series resistor must not be soldered directly to the terminals of the equipment (use a terminal plate)When using AC/DC types with AC operation, slight flickering can occurThe luminous intensity stated is for when used with DCElectrical and optical data are measured at 25 °CThe specified versions are built with a protection diode (halve wave rectifier) in series and the LEDLuminosity and wave length variations caused by LED manufacturing processes may cause slight differences regarding the illumination. The customer has to decide what resistor shall be used to the LEDWhere supply voltages are over 48 V, a voltage-reduction element (external protective series resistor) must be used.Keep to the country specific safety instructions
- Wiring diagrams:
- Dimension drawings:
Télécharger des fichiers
Composant pour 18.96 USD
Ajouter au panier
